Designed as an alternative and upgrade to traditional gauge devices, Magnetic Level Indicators (MLI) from Orion Instruments® are manufactured to provide accurate and reliable liquid level in a wide range of applications. Our MLI product line-manufactured globally at multiple facilities— requires minimum maintenance and eliminates common sight glass problems like vapor and liquid emission. Orion Instruments specializes in precision-engineered excellence and offers highly customized configurations and options for process environments, including those with extreme temperatures and pressures.

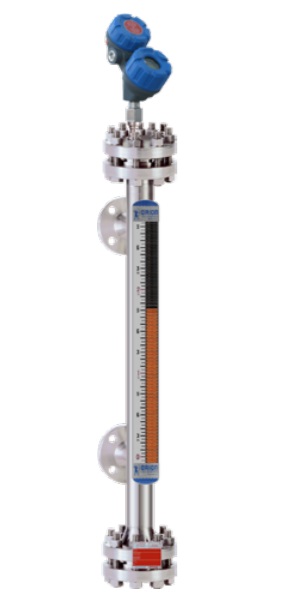

True Redundancy in a Single Chamber of Magnetic level indicator Aurora® .The Aurora® MLI combines Eclipse® Guided Wave Radar (GWR) and a float-actuated visual indicator to simultaneously provide both continuous and local level indication. So unique is the Orion Instruments ® dual redundancy within a singlechambered MLI that Aurora® has been granted a U.S. patent.

Technology of Magnetic level indicator Aurora®
Radar Transmitter
The Eclipse® transmitter continuously emits electromagnetic radar pulsesdirectly off the liquid surface.The on-board electronics provide a real-time level output, in addition to the external visual indicator operated by the Aurora® internal float.

Baffle Plate
The GWR probe area is separated from the freemoving float by a baffle plate.

Vertical Float
The custom float located inside the chamber is magnetically coupled to the visual indicator. The float rotates flags or moves a shuttle to visually indicate liquid tank level (as explained in more detail at right).

Visual Indication

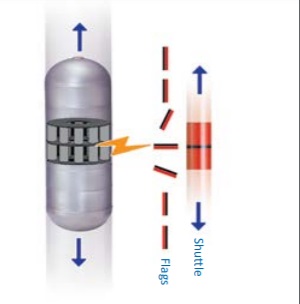

The float positioned within the Aurora® chamber risesand falls according to levelchanges. The float contains an internal group of magnetsthat are “coupled” with magnets in the flags of the visual indicator. As the float moves, the flags rotate to expose the color of theiropposite side. The position where the flag’s color changes corresponds to a point on the measuring scale indicating true level. (The optional shuttle indicator moves parallel with the float to indicate level on the scale).



Optimum Float Performance
Orion Instruments® floats are engineered to provide the world’s best MLI performance.The 360-degree vertical placement of the magnets assures proper coupling with the flag or shuttle of the indicator, even if the float is spinning in its chamber. The magnetic assembly creates a constant Gauss rating optimized to ensure reliable performance. Float magnets are designed to function at temperatures up to +537° C (+1000° F) for years of reliable service.Special float alloys are available.

Baffle Plate

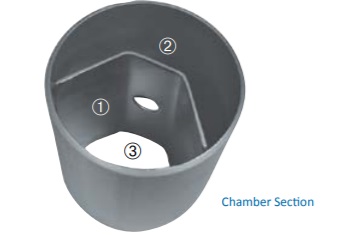

The superb float performance within the Aurora® is due in part to an angled baffle plate mounted inside the chamber.The baffle plate ➀ partitions the GWR probe area ➁ from the float area ➂ and serves as a guide to ensure both smooth float travel and proper indicator operation. Perforations along the baffleplate equalize pressure and allow free media flow within the chamber. The probe area ➁ also acts as a gasbypass zone when flashing occurs. This helps in preventing damage to the float.


Features of Magnetic level indicator Aurora®
Introduced in 1998, Eclipse® Guided Wave Radar (GWR) quickly ascended to its leading role in process level measurement. GWR is still favored throughout the industry for its easy setup, trouble-free operation, measurement accuracy, and immunity to changing process conditions.The Aurora® single chamber houses both the Eclipse® GWR probe and buoyancy float, with the former providing continuous measurement and the latter magnetically coupledto a visual indicator to provide local level indication. A flag-type indicator (or a moving shuttle) visually indicates liquid level. A variety of measurement scales and indicator flag colors are available.

Applications of Magnetic level indicator Aurora®
        - Alkylation Tanks
        - Blowdown Tanks
        - Boiler Drums
        - Condensation Tanks
        - Deaerators
        - Feedwater Heaters
        - Flash Drums
        - Gas Chillers
        - Hot Wells
        - Industrial Boilers
        - Oil-Water Separators
        - Propane Vessels
        - Storage Tanks
        - Surge Tanks
        - Vacuum Towers
